Product Information

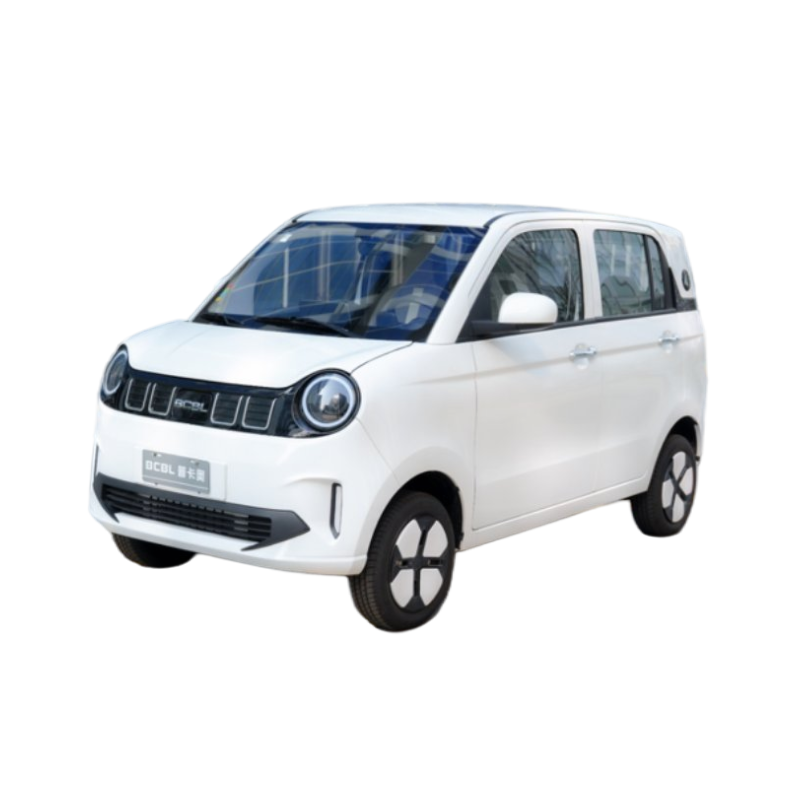

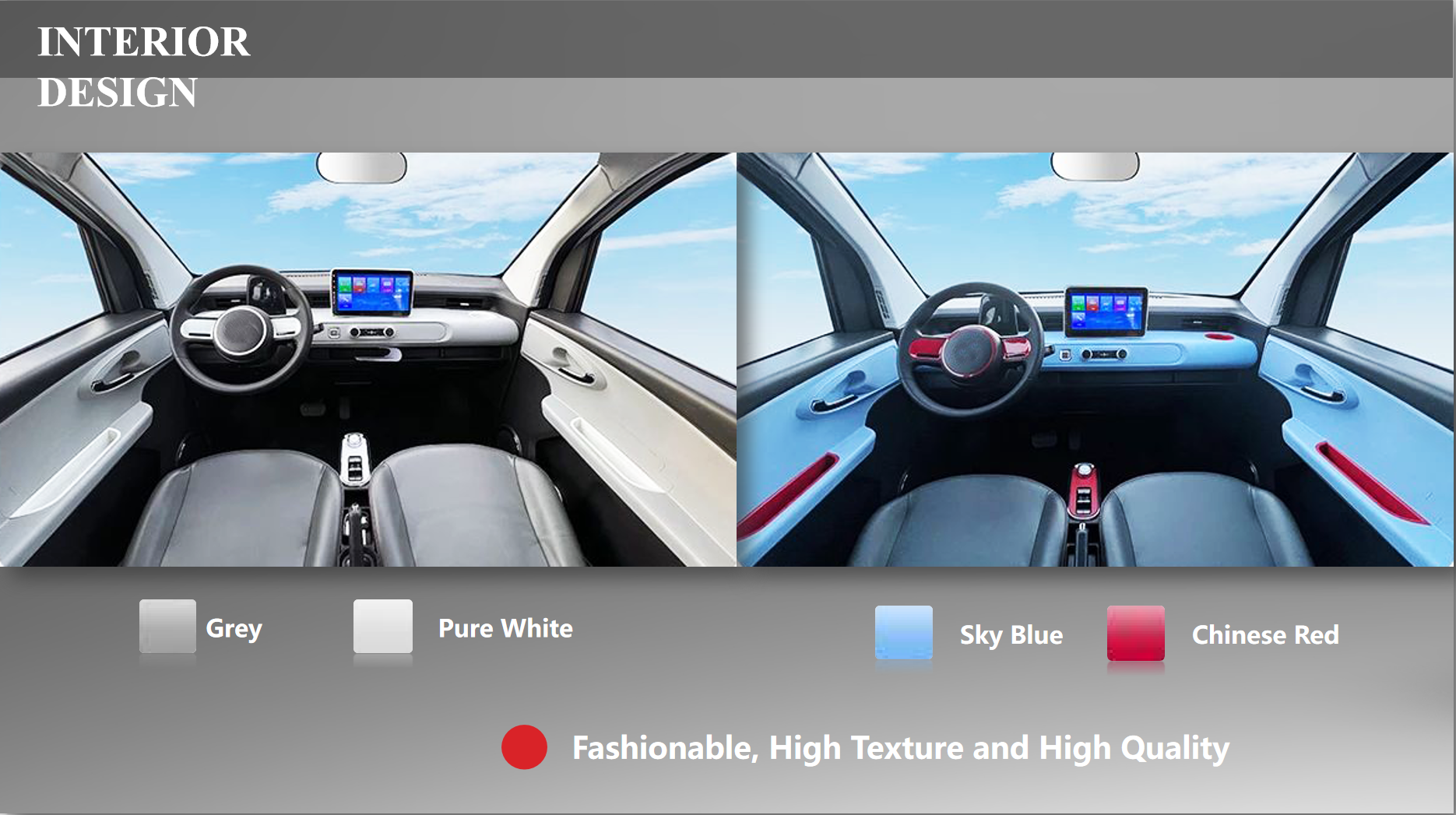

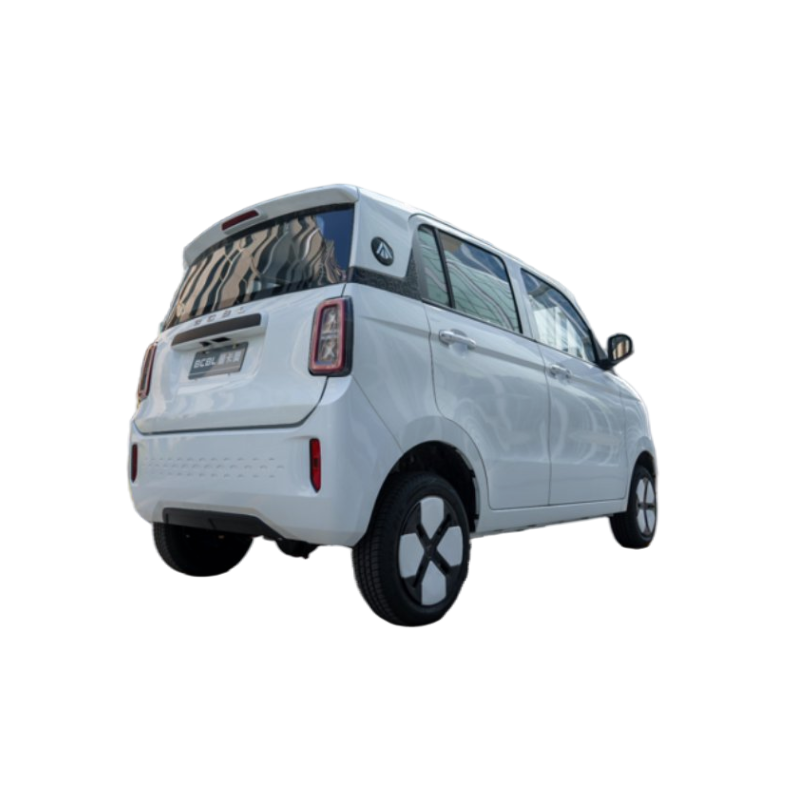

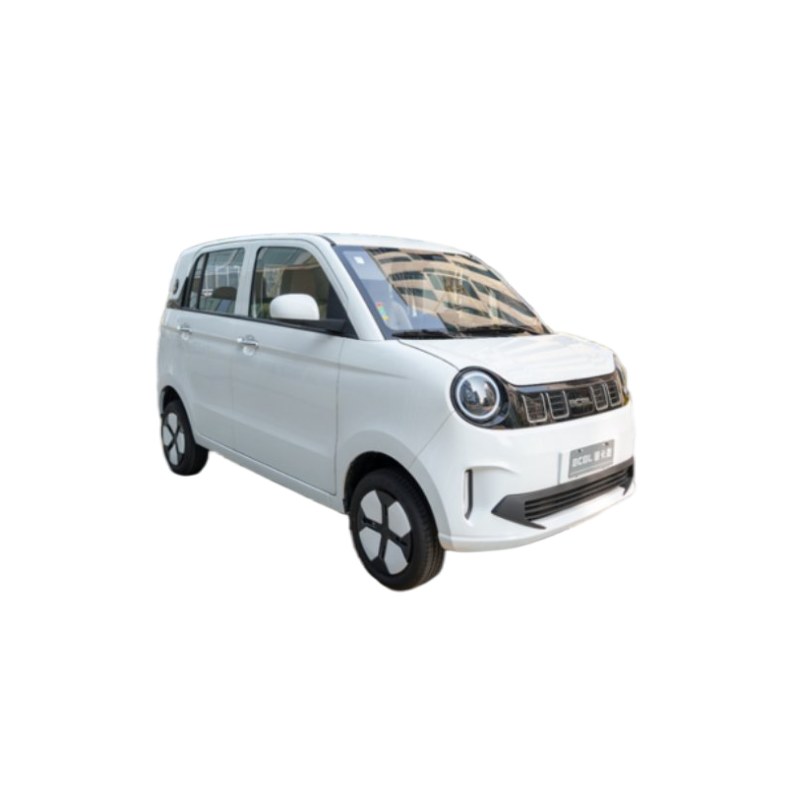

The BCBL-Orca, independently developed by China's Pukao Company, is a compact MPV featuring dual-mode (pure electric and range-extended) powertrain technology, delivering a range of up to 400 km. Its 5-door design and monocoque body structure ensure optimized spatial functionality, while the low center of gravity inherent to the monocoque chassis enhances driving stability at high speeds, significantly improving safety.The vehicle employs a MacPherson strut front suspension system, providing excellent responsiveness and handling precision for enhanced driver control. The centrally-mounted gearshift button offers both sleek aesthetics and operational convenience. Modern amenities include a large central touchscreen and Bluetooth connectivity, elevating the driving experience.Combining cost-effectiveness with contemporary design, the BCBL-Orca stands out as the optimal choice for urban mobility and lifestyle-oriented transportation needs.
| BCBL-Orca configuration table and quotation | ||||
| Configuration items | Standard Edition | |||

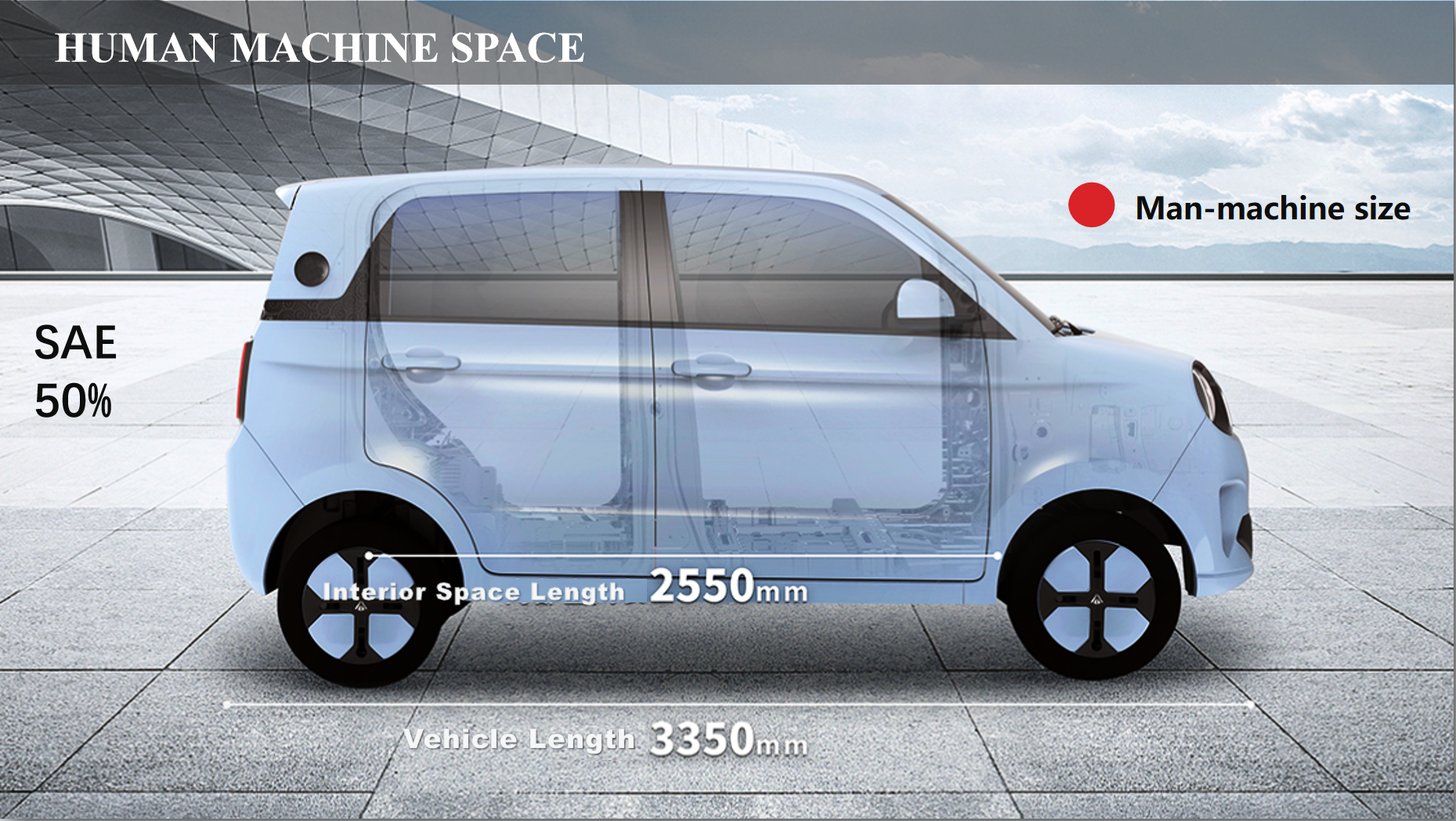

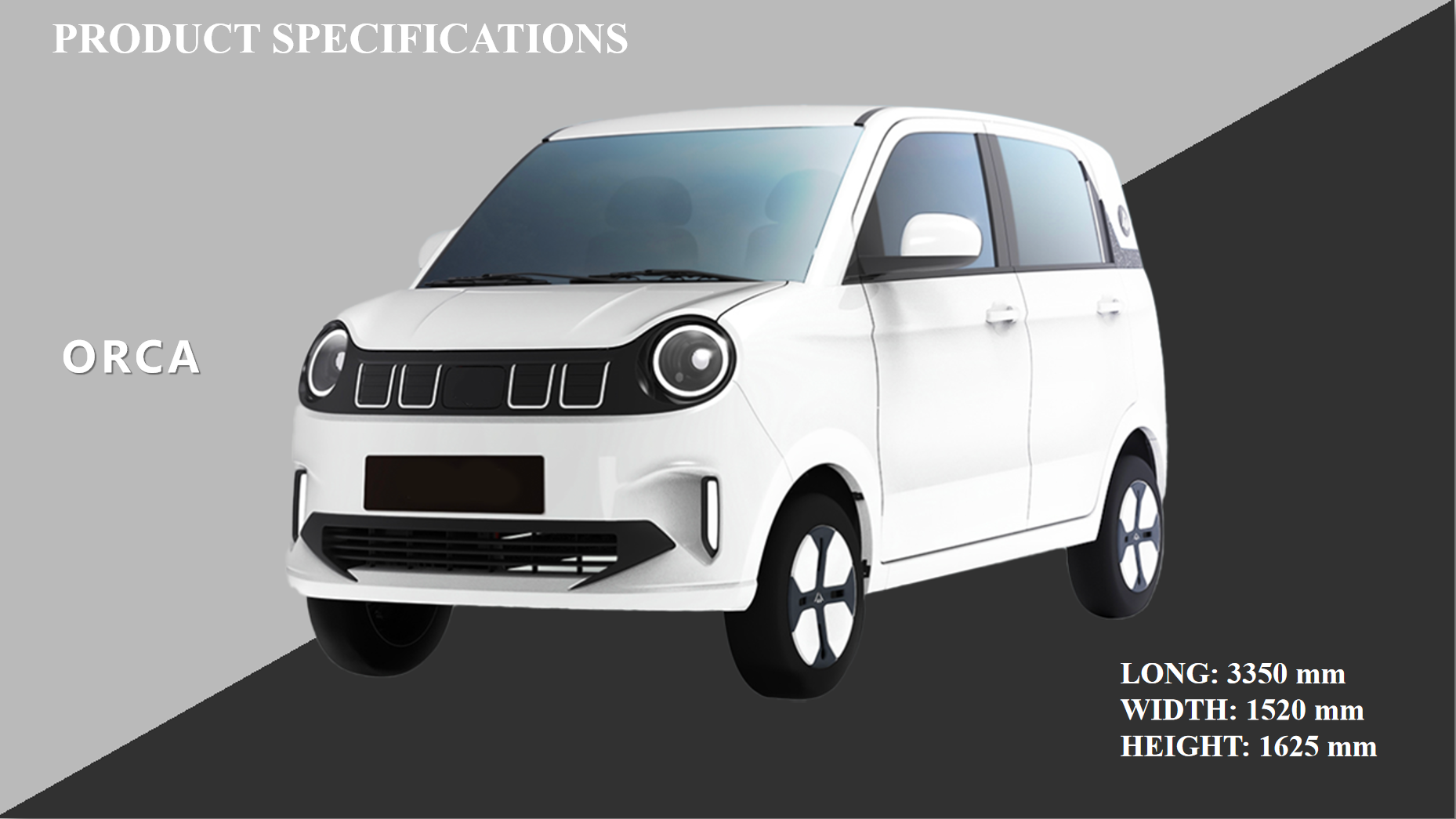

| General Specifications | Long (mm) | 3350 | ||
| Width (mm) | 1520 | |||
| Height (mm) | 1625 | |||
| Wheelbase (mm) | 2280 | |||
| Number of seats (persons) | 5 | |||
| Test weight (including battery+1 person) | 800 | |||
| Body structure | Body models | Integral body construction | ||
| Body-on-frame | 5 doors, 5 seats | |||

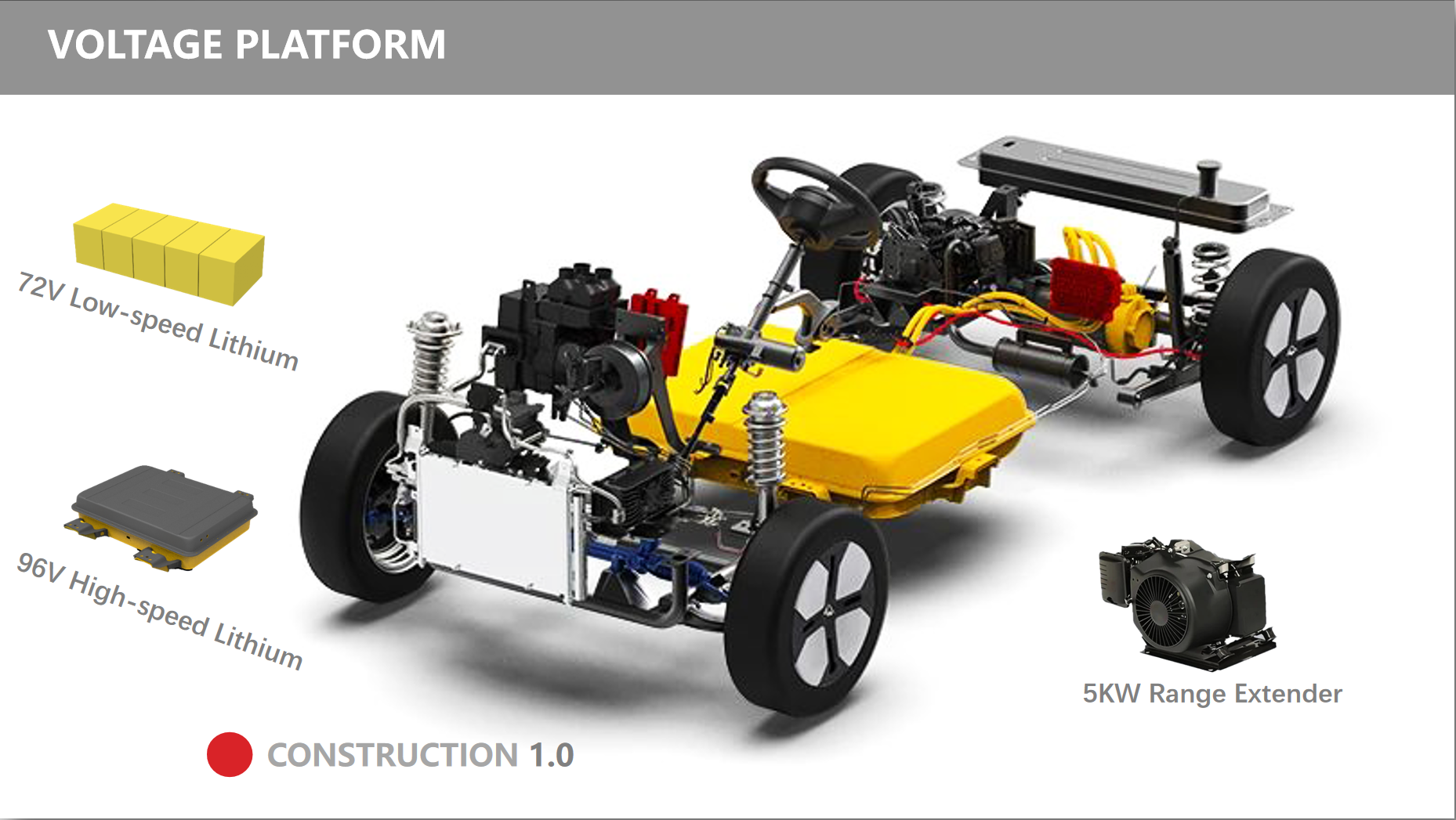

| Dynamical system | Motor type | Asynchronous communication | ||
| Motor rated power (KW) | 5 | |||
| Motor rated voltage (V) | 72 | |||
| Battery type | Lithium Iron Phosphate | |||
| Number of power batteries | 1 | |||
| Rated capacity | 10.8KWH | |||
| Extended range battery (optional) | / | |||
| Driving form | Driving form | Rear-engine Rear-drive | ||
| Dynamic economy | Maximum speed (KM/h) | 55 | ||
| Gradient | ≤25% | |||
| Endurance(KM)(0) | ≥350KM | |||
| Built-in charger | YES | |||
| Charging time(h) | 8-10H | |||
| Suspension architecture | Front suspension | MacPherson independent | ||
| Rear suspension | Draglink drive axle | |||
| Vehicle wheel | Front tire specification | 155/65 R13 | ||
| Rear tire specification | 155/65 R13 | |||
| Rim material | Steel Rim | |||
| Spare wheel | × | |||
| Steering system | Steering mode | Mechanical | ||
| Multi-function steering wheel | / | |||
| Power-assisted steering(EPS) | YES | |||
| Braking System | Front/Rear Brake Type | Front disc/back drum | ||
| Brake assist | YES | |||
Service&Terms
- Q: AFTER-SALESA: We have established a perfect after-sales service system including overseas service training and on-site technical guidance.
- Q: STOCKA: All products are not available in stock, including quality sample.
- Q: ASSEMBLYA: Complete built unit (CBU) mode unless specified.
- Q: MOQA: Ranges from 10-50 pieces depending on the difference category and model.
- Q: CUSTOMIZATIONA: OEM customization is available as per your color and logo, our R&D and graphic design team support.
- Q: SAMPLEA: Support custom sample for quality approval, but sample surcharge will be requested and at your shipping cost.
- Q: PAYMENT TERMA: 30% deposit, balance 70% before shipment or by irrevocable L/C at sight if better quantity orders.
- Q: DELIVERY TIMEA: 45-90 days after sample approval and deposit arrival depending on order quantity and parts supply chain status when off or peak season.
- Q: SHIPMENT MODEA: Full container load (FCL) by sea according to your designated forwarder. Our partner forwarder is available if request.
- Q: WARRANTYA: Within 1 year after shipping date.We guarantee the products you received to be free from manufacturer defects.
