BCBL-PANDA1

库存： 0

Inquire

Add to Basket

Product Information

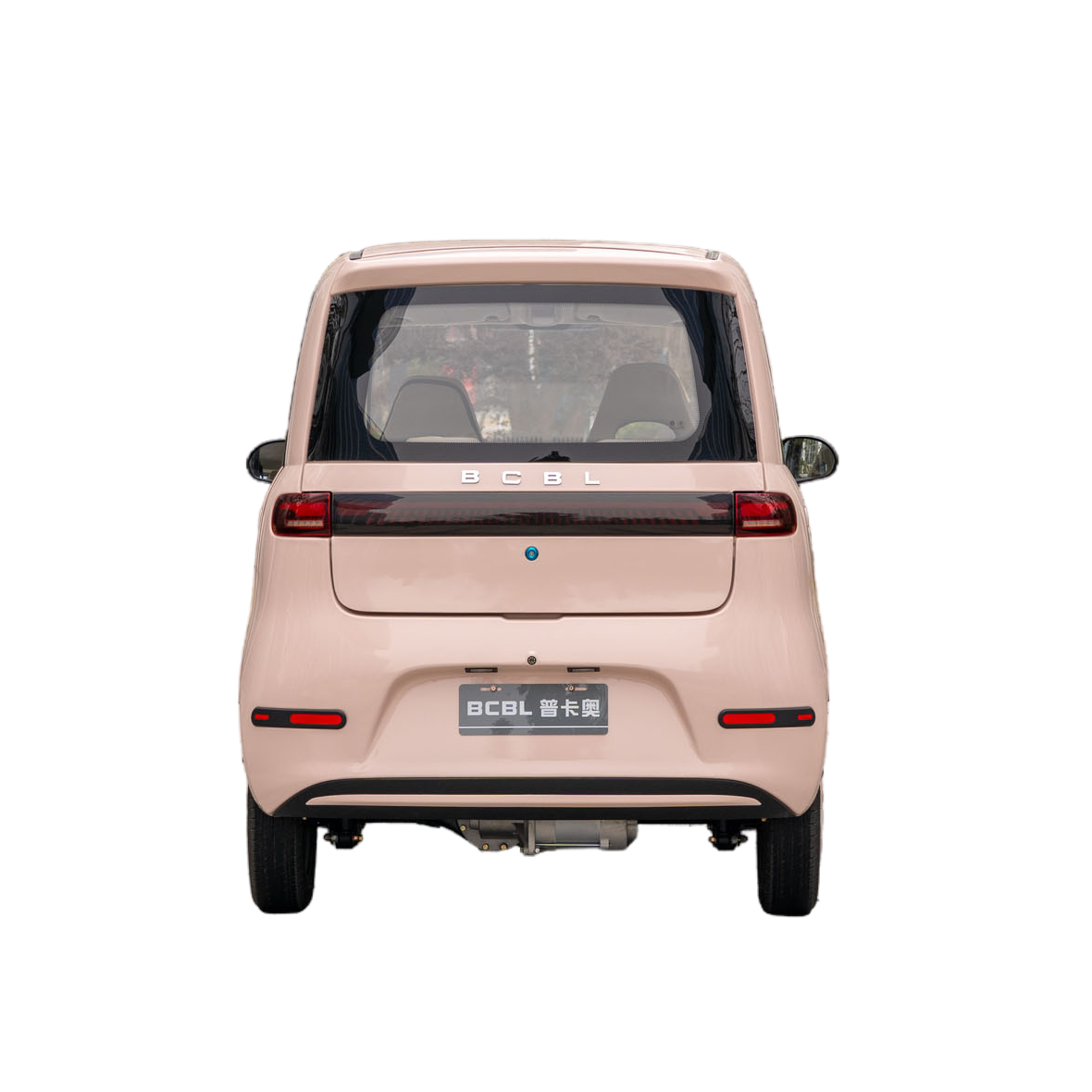

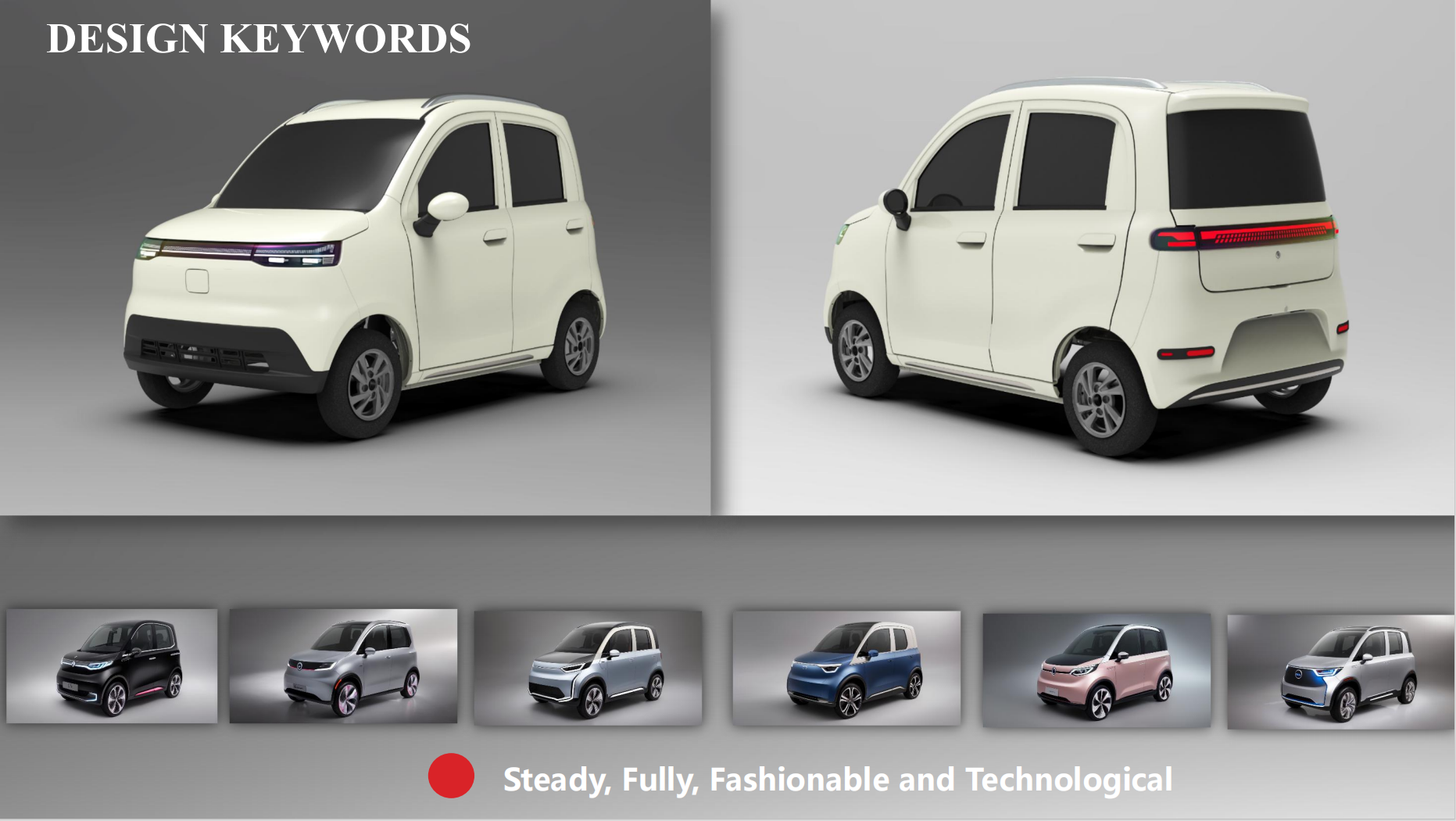

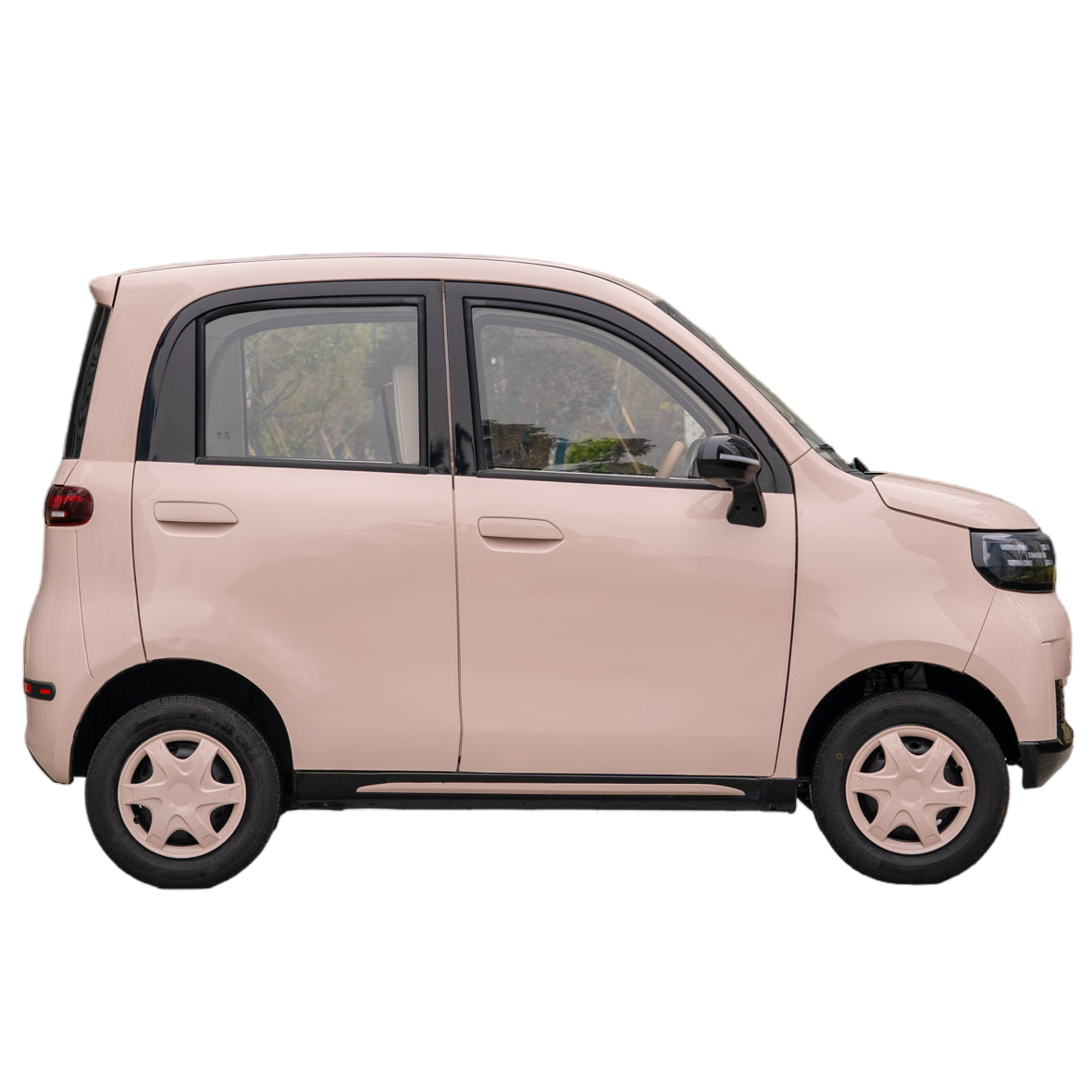

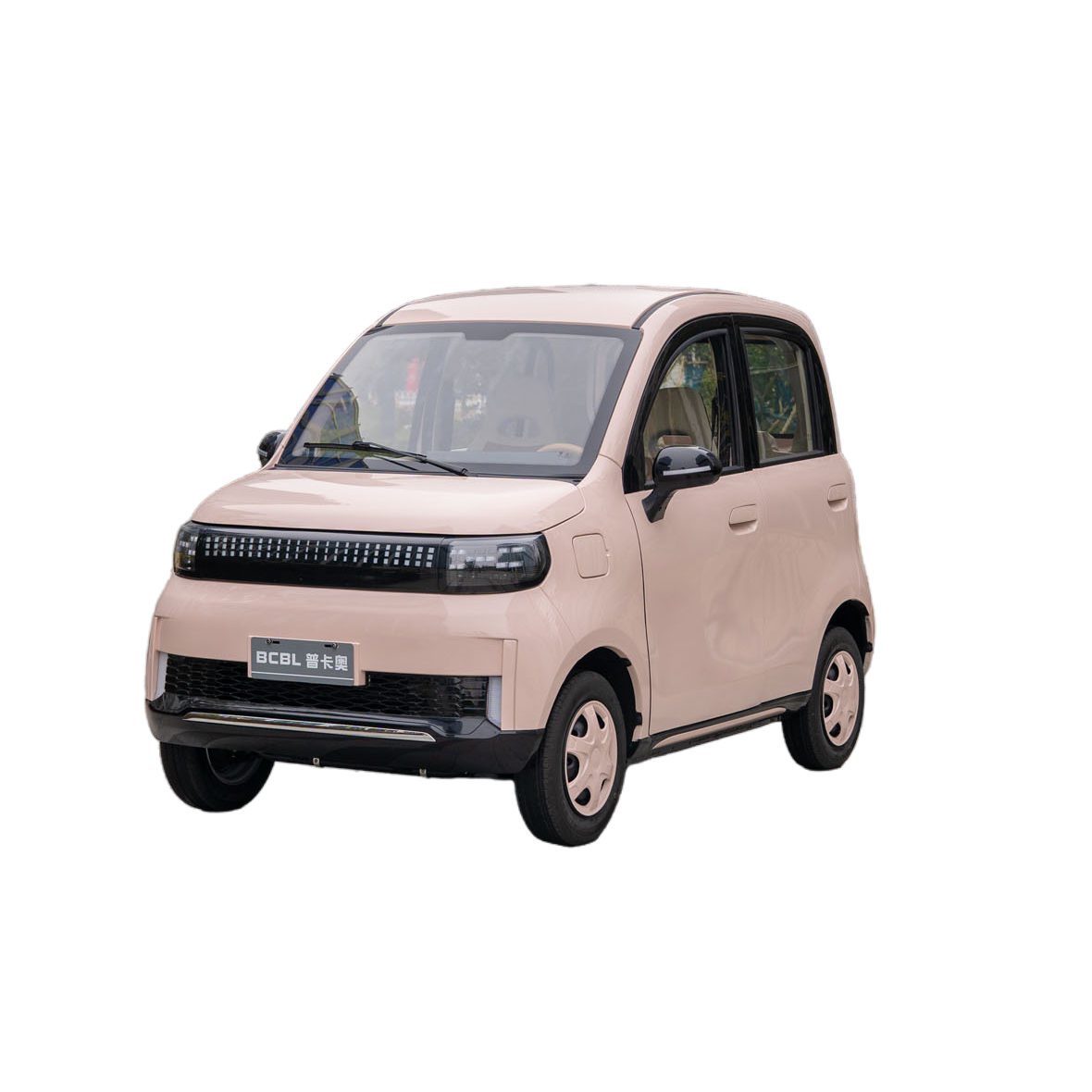

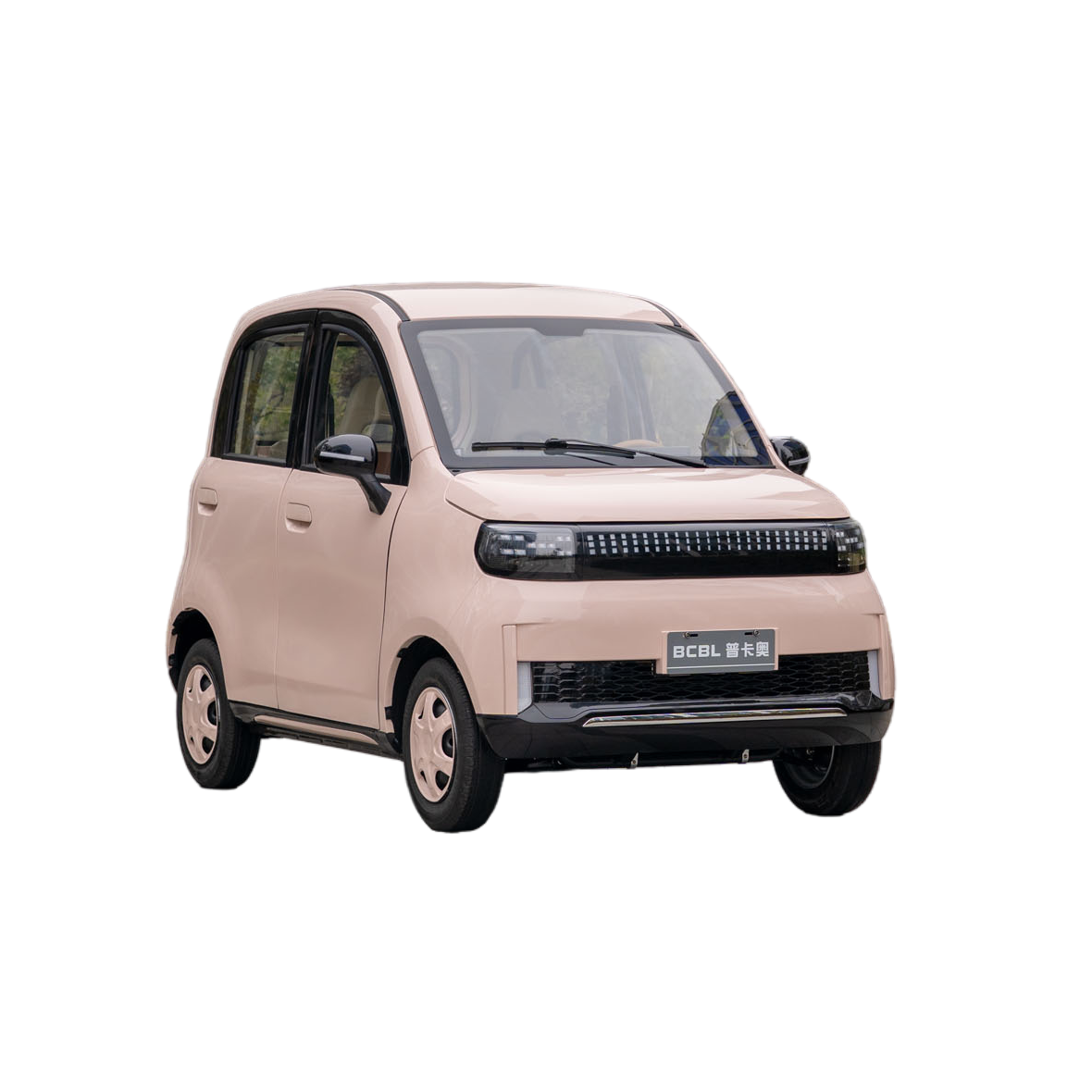

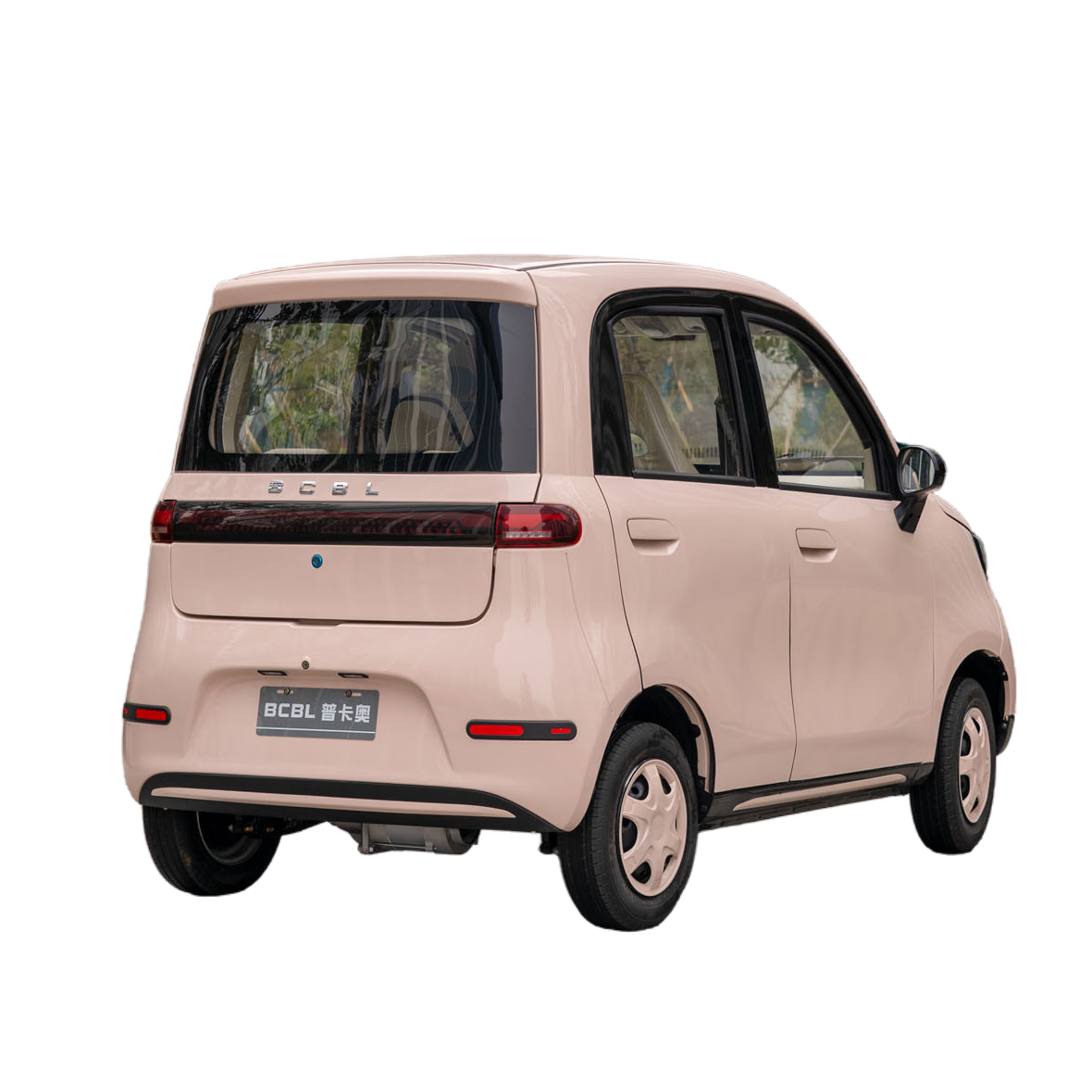

BCBL-Panda is a mini model independently developed by Pukao China. It has a 5-door design and the whole car is designed with load-bearing body, which has better stability in fast driving. The front suspension adopts MacPherson type, which has good responsiveness and control, enabling the driver to control the vehicle more accurately in the driving process. BCBL-Pamda is also equipped with a central control screen, Bluetooth link, economic fashion BCBL-Panda is the nice choice for your life travel!

	BCBL-PANDA ONE Configuration & Quotation
Configuration items			Advanced Edition

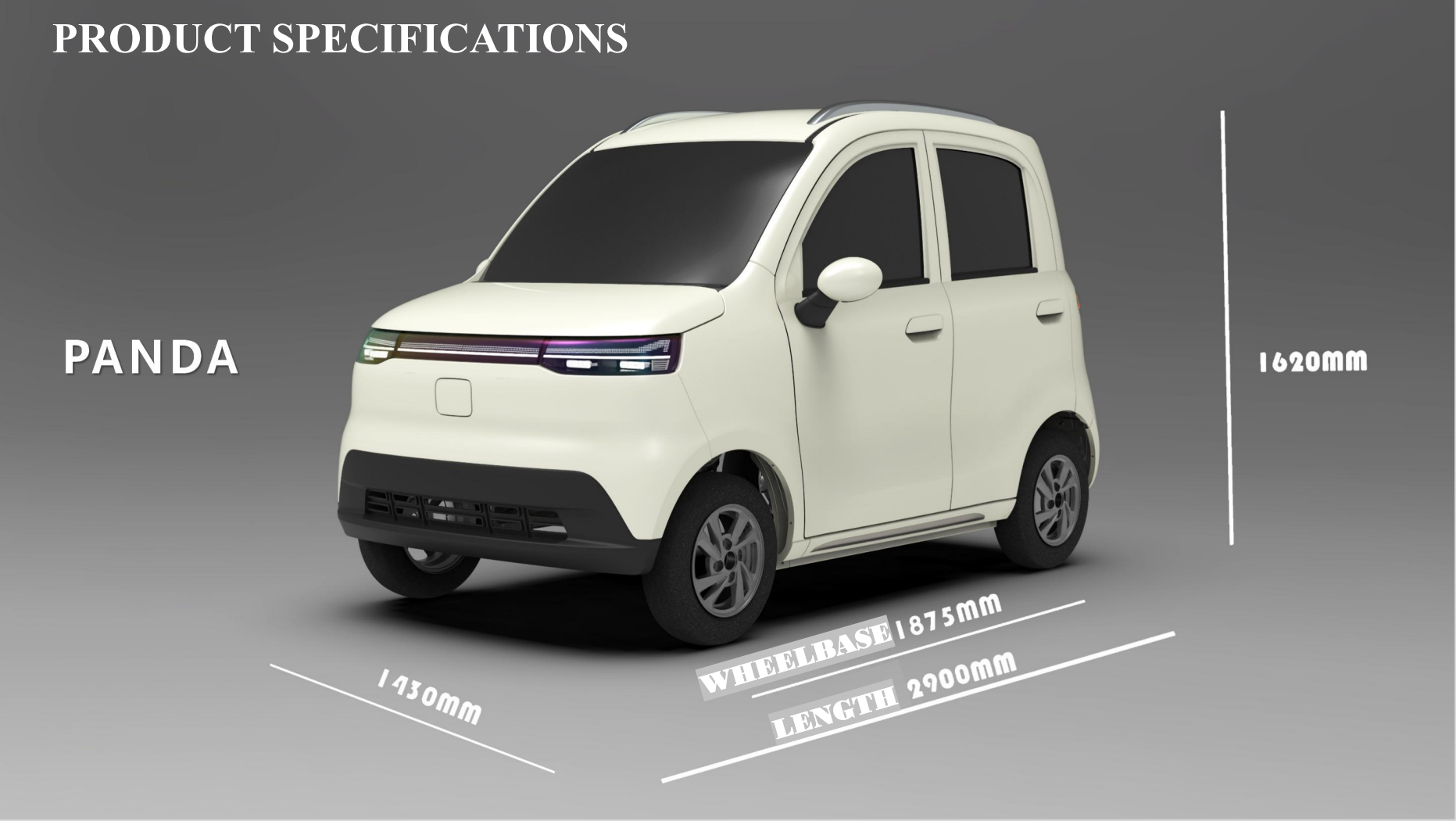

Car ride parameters	Long (mm)	2900
		Width (mm)	1430
		Height (mm)	1625
		Wheelbase (mm)	1875
		wheel track (mm) front/rear	1240/1240
		Number of seats (persons)	4
		Test weight (including battery (10.8 degrees) +1 person)	650
Body structure	Body models	Body-on-frame
Body structure		Body structure	5 doors, 4 seats
Dynamical system	Motor type	Asynchronous communication
		Motor rated power (KW)	4
		Motor rated voltage (V)	72
		Battery type	Lithium Iron Phosphate
		Number of power batteries	1
		Rated capacity	10.8KWH
		Extended range battery (optional)	/
Driving form	Driving form	Rear-wheel drive
Dynamic economy	Maximum speed (KM/h)	60
		Gradient	≥20%
		endurance(KM）（0）	≥150KM
		Built-in charger	●
		Charging time（h)	7
uspension architectur	Front suspension	MacPherson independent
uspension architectur		Rear suspension	Draglink drive axle
Vehicle wheel	Front tire size	145 70 R12
		Rear tire specifications	145 70 R12
		Wheel Rim Material	Steel wheel rim
		Spare tire	×
Diversion	Steering control type	mechanical
		Multifunctional steering wheel	/
		Power Steering（EPS）	○
Brake system	Front/Rear Brake Type	Front disc/back drum
Brake system		Brake Assist	●
afe & comfortable un	Driver's 3-point seat belt	●
		Remote key	●
		Front window power lift	electromotion
		One-click start	●
		Four-way manual adjustment for the driver's seat	●
		Fabric seats	●
	BCBL-Panda -01 Price and Configuration Table
Configuration items			Advanced Edition
	Leather seats	○
		Rearview parking sensor	●
		Backup camera	●
Interior and exterior trimming	Manual adjustment of the side mirrors	●
		Inside rear-view mirror	●
		Wheel hub caps	×
		Driver's sun visor	●
		Co-pilot sun visor	●
		Safety handle	●
		Boneless windshield wipers	●
		Washing kettle	●
		Luggage rack	○
Electric appliance	Front row indoor ceiling light	●
		Air conditioner	○

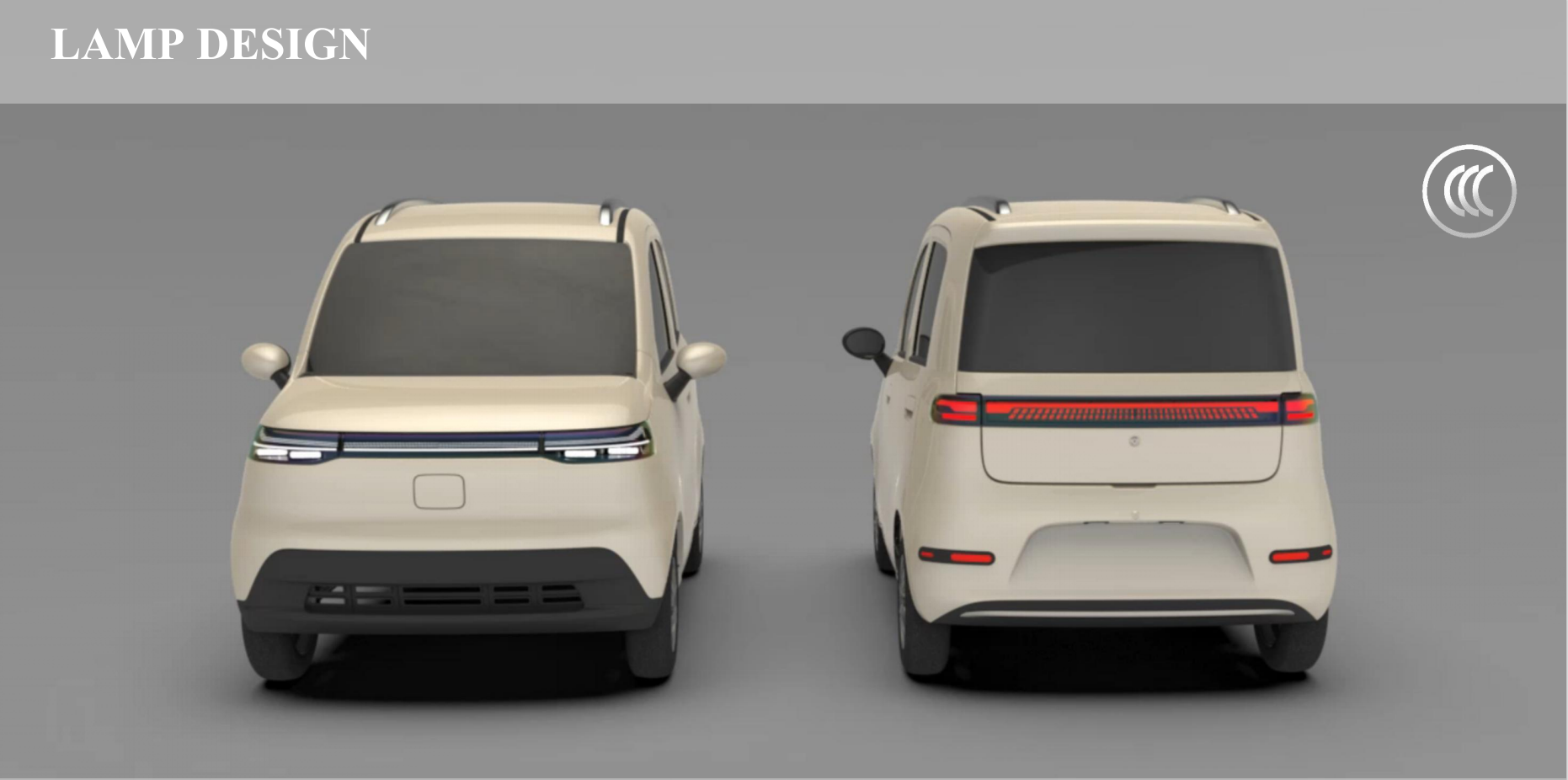

		Daytime LED driving lights	●
		Rear fog lights	○
		Rear reflector	●
		License plate light	●

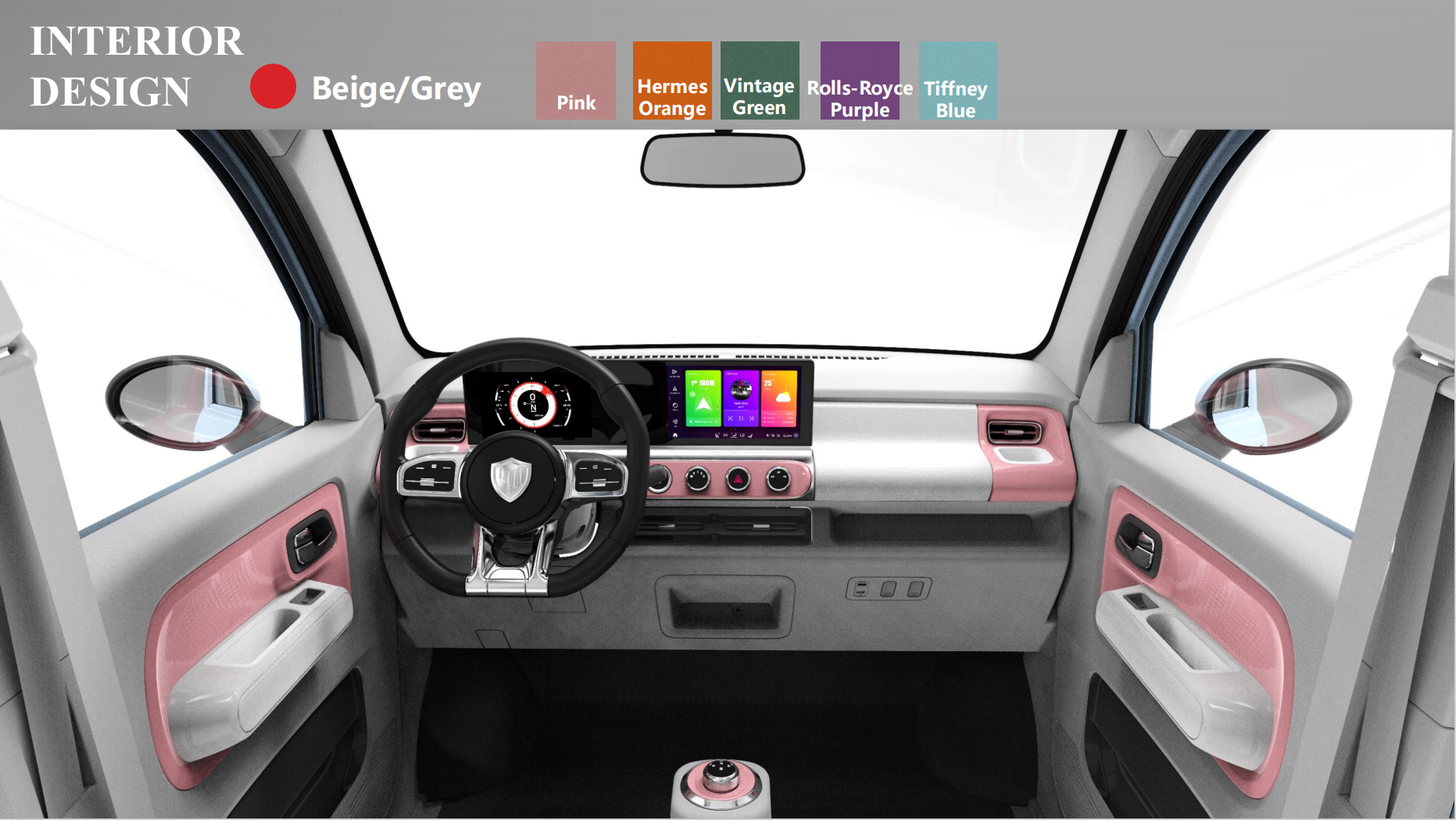

		Liquid crystal display instrument	7Inch

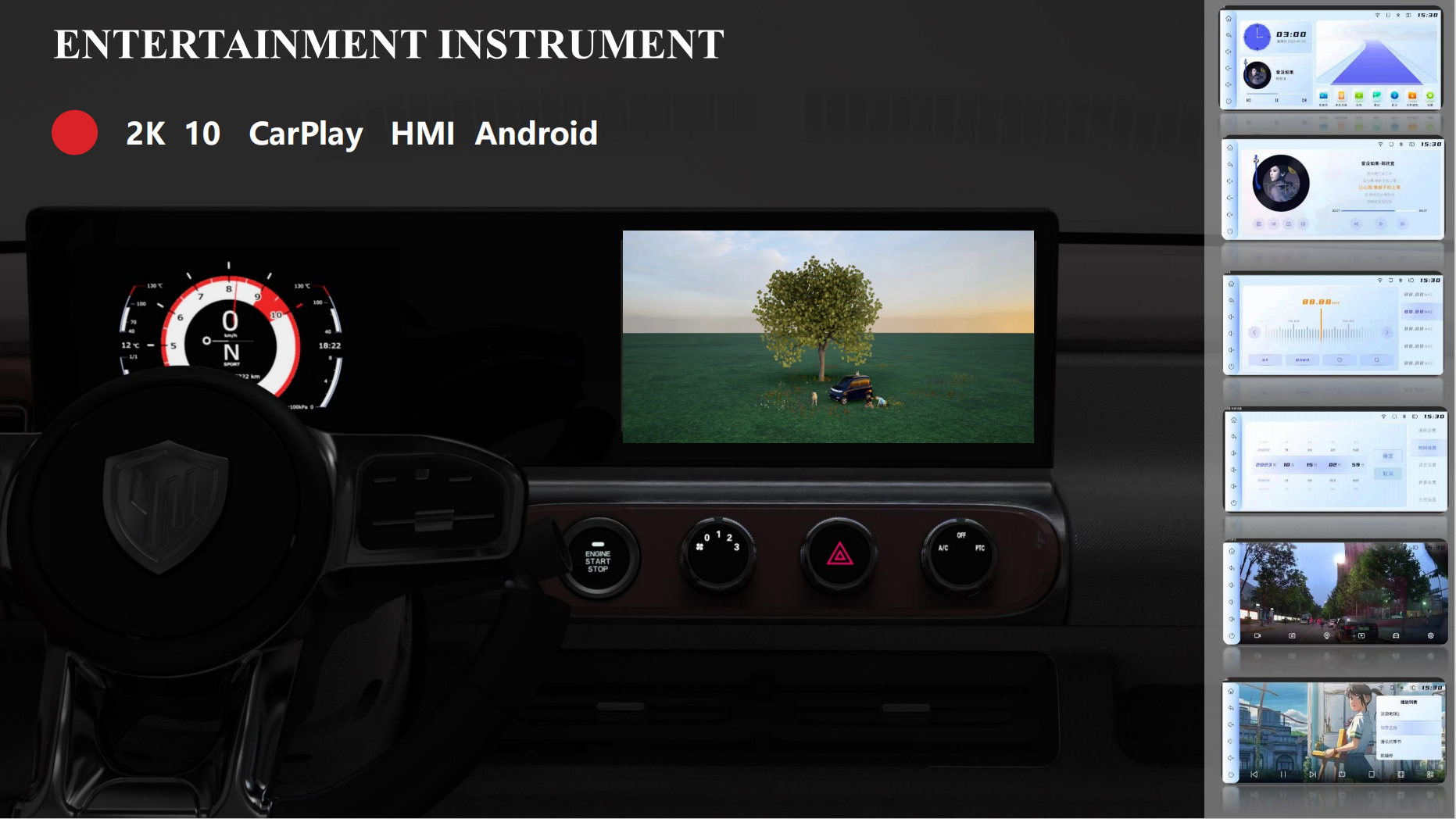

Multimedia	Entertainment screen	10.25Inch
		System	Android
		USB Charging port	●
		Radio	●
		Speaker	2
FOB Price			USD 4,150.00
Remark matching：Air conditioner（220USD）、EPS（120USD）

Service&Terms

Q: AFTER-SALES

A:

We have established a perfect after-sales service system including overseas service training and on-site technical guidance.
Q: STOCK

A:

All products are not available in stock, including quality sample.
Q: ASSEMBLY

A:

Complete built unit (CBU) mode unless specified.
Q: MOQ

A:

Ranges from 10-50 pieces depending on the difference category and model.
Q: CUSTOMIZATION

A:

OEM customization is available as per your color and logo, our R&D and graphic design team support.
Q: SAMPLE

A:

Support custom sample for quality approval, but sample surcharge will be requested and at your shipping cost.
Q: PAYMENT TERM

A:

30% deposit, balance 70% before shipment or by irrevocable L/C at sight if better quantity orders.
Q: DELIVERY TIME

A:

45-90 days after sample approval and deposit arrival depending on order quantity and parts supply chain status when off or peak season.
Q: SHIPMENT MODE

A:

Full container load (FCL) by sea according to your designated forwarder. Our partner forwarder is available if request.
Q: WARRANTY

A:

Within 1 year after shipping date.We guarantee the products you received to be free from manufacturer defects.
